Características:

• Admite procesadores de escritorio AMD Ryzen™ serie 9000/8000/7000
• Admite memoria DDR5, doble canal DDR5 8200+ MT/s (OC)
• Rendimiento ultrarrápido: sistema de alimentación Duet Rail 12+2+1, conectores de alimentación de CPU duales de 8 pines, Core Boost, Memory Boost, PCB de 6 capas fabricada con cobre engrosado de 2 oz y material de nivel de servidor
• Frozr Guard: disipador de calor extendido, almohadillas térmicas MOSFET clasificadas para 7 W/mK, almohadillas térmicas de estrangulamiento adicionales y EZ M.2 Shield Frozr II están diseñados para un sistema de alto rendimiento y una experiencia ininterrumpida
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II y EZ Antenna
• Experiencia de juego ultrarrápida: ranura PCIe 5.0 y Lightning Gen 5 x4 M.2
• Solución 5G LAN con Wi-Fi 7: la última solución para uso profesional y multimedia, que ofrece Transmisión de datos y redes seguras, estables y de alta velocidad
• Audio Boost: premia tus oídos con una calidad de sonido de calidad de estudio para disfrutar de la experiencia de juego más envolvente

Especificaciones:

• Chipset: AMD B850
• CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket: AM5
• Memory:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPOTM
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only*
  • *CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot.
  • Double-sided latches on DIMM slots.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. Refer to the Memory Compatibility List.
• Onboard Graphics:
  • 1x HDMI™
  • Supports HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics.
• Slot:
  • 4x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot:
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
  • * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth; PCI_E3 slot runs at x2 speed when devices are installed in PCI_E2 or PCI_E4 slots.
• Audio: Realtek® ALC897
  • 7.1-Channel High Definition Audio
• Storage:
  • 3x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices
  • 4x SATA 6G
  • M2_1 slot:
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M2_2 slot:
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
  • *Refer to the manual for M.2 SSD heatsink restrictions.
• RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 2x USB 10Gbps Type C (Rear)
• LAN: Realtek® 8126VB 5G LAN
• Internal IO:
  • 1x Power Connector (ATX_PWR)
  • 2x Power Connector (CPU_PWR)
  • 1x Power Connector (PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector (JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
• Wireless LAN & Bluetooth:
  • Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
• LED Feature: 4x EZ Debug LED

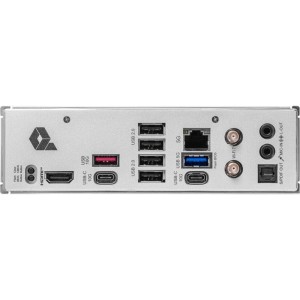

• Back Panel Ports:
  • Clear CMOS Button
  • USB 10Gbps Type-A
  • USB 2.0
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • HDMI™
  • USB 10Gbps Type-C
  • USB 5Gbps Type-A
  • USB 10Gbps Type-C
  • S/PDIF OUT
• Operating System: Support for Windows® 11 64-bit
• PCB Info: ATX, 243.84mm x 304.8mm
