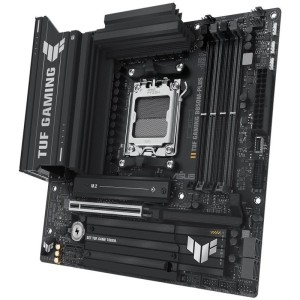

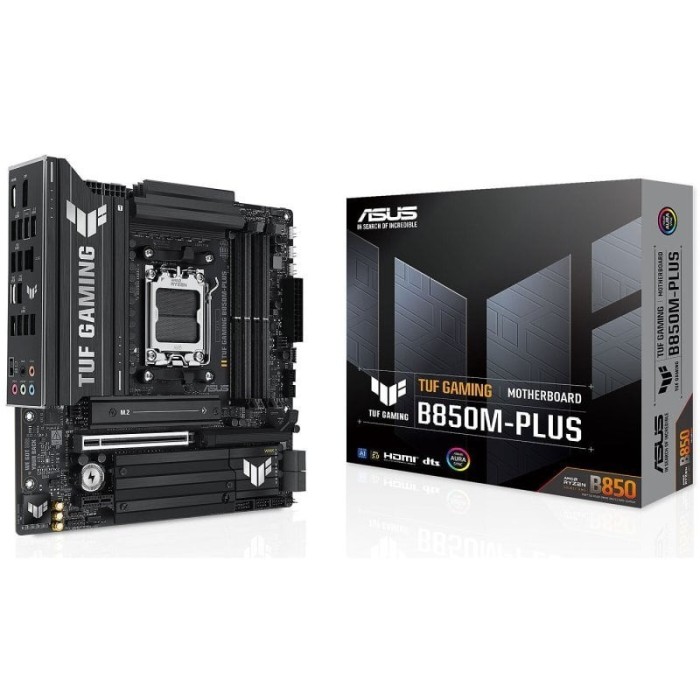

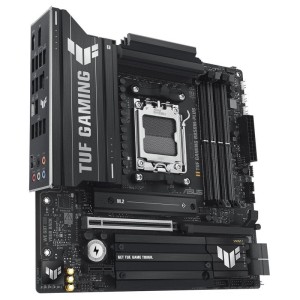

Especificaciones ASUS TUF GAMING B850M-PLUS

• Factor de forma: mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• Chipset: AMD B850
• Memoria
  • 4 x DIMM slots, max. 192GB, DDR5
  • Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Gráficos
  • 1 x DisplayPort
  • 1 x HDMI™ port
• Expansión
  • 1 x PCIe 5.0 x16 slot (supports x16 mode) (Solo Ryzen 9000 y 7000)
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** (Ryzen 8000)
  • 1 x PCIe 4.0 x1 slot
• Almacenamiento
  • 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • ASUS LANGuard

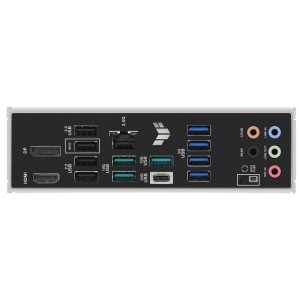

• Puertos traseros
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 3 x USB 10Gbps ports (3 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
• Conexiones internas
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x USB 10Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x 10-1 pin Front Panel System header
